Retrieval Tool

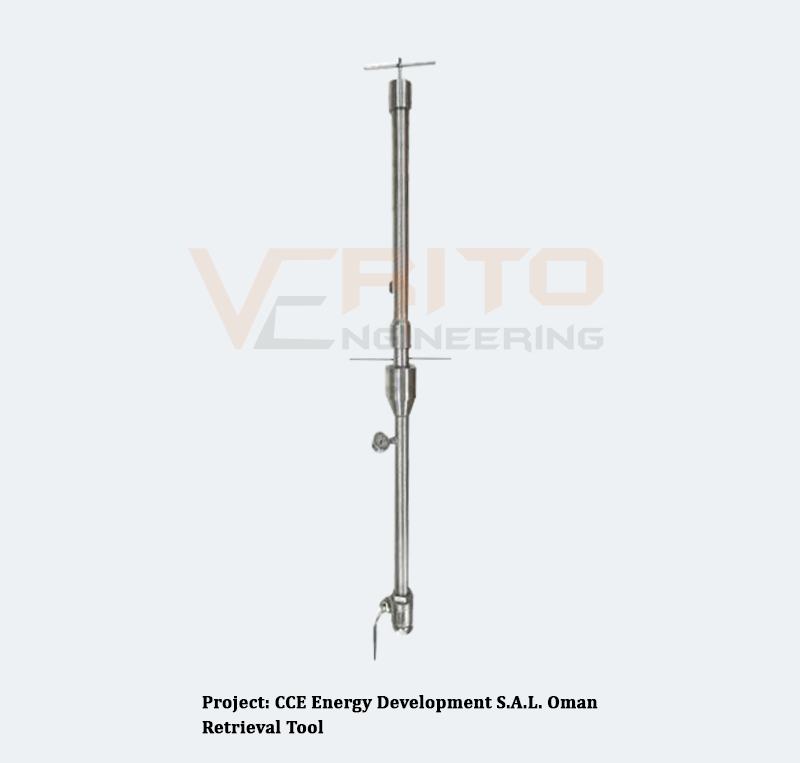

This retrieval tool for an injection quill is specifically engineered to eliminate the need to depressurize or divert the process line fluid while retrieving the quill. This can be useful when dealing with chemicals that are prone to clogging, such as sodium hypochlorite, ammonia, and polymer.

This feature is particularly valuable in scenarios where the preservation of specific pressure levels is crucial for the proper functioning and integrity of the system. The tool's dual functionality enhances operational efficiency and safety in processes that demand precise pressure control.









Specifications
  • Type: Tee Type, Retrievable, Access Fitting
  • Material Of Construction: SS304, SS304L, SS316, SS316L, Super Duplex Stainless Steel, Hast Alloy, Inconel Alloy, Special Alloy.
  • Operating Pressure: 0 - 250 Bar Max.
  • Design Temp: -20℃ to 200℃
  • Certificates: (I) Type 3.1 - EN10204 For Pressure Containing Parts (II) Type 2.2- EN10204 For Non-Pressure Containing Parts + Gaskets, Seals, Cover, Etc.
  • Maximum Pipe Line Size: designed upto 40”
  • Retrieval Tool Overall Length: designed upto 2800 mm
  • Code Compliant: ASME, code B31.3, ISO



Features
  • Can be used with multiple injection quill
  • Top-Wheel Manipulation to Allow Safe Operation.
  • Compact design to allow retrieval in minimum clearance areas.
  • Lightweight construction for single person operation.
  • Ensures effective sealing when closing the valve, preventing leaks and maintaining the integrity of the system.
  • Engineered to handle high pressure ratings
  • Incorporates safety features such as locking mechanisms to prevent accidental releases and ensure secure operation.



Application
  • Oil & Gas
  • Pharmaceuticals
  • Power
  • Chemicals & Fertilizers
  • Paper Industries
  • Water, Waste Water, Sewage
  • Petrochemicals
  • Food & Beverages
